Structural works
- Inter form
AC 200 FORMWORKS

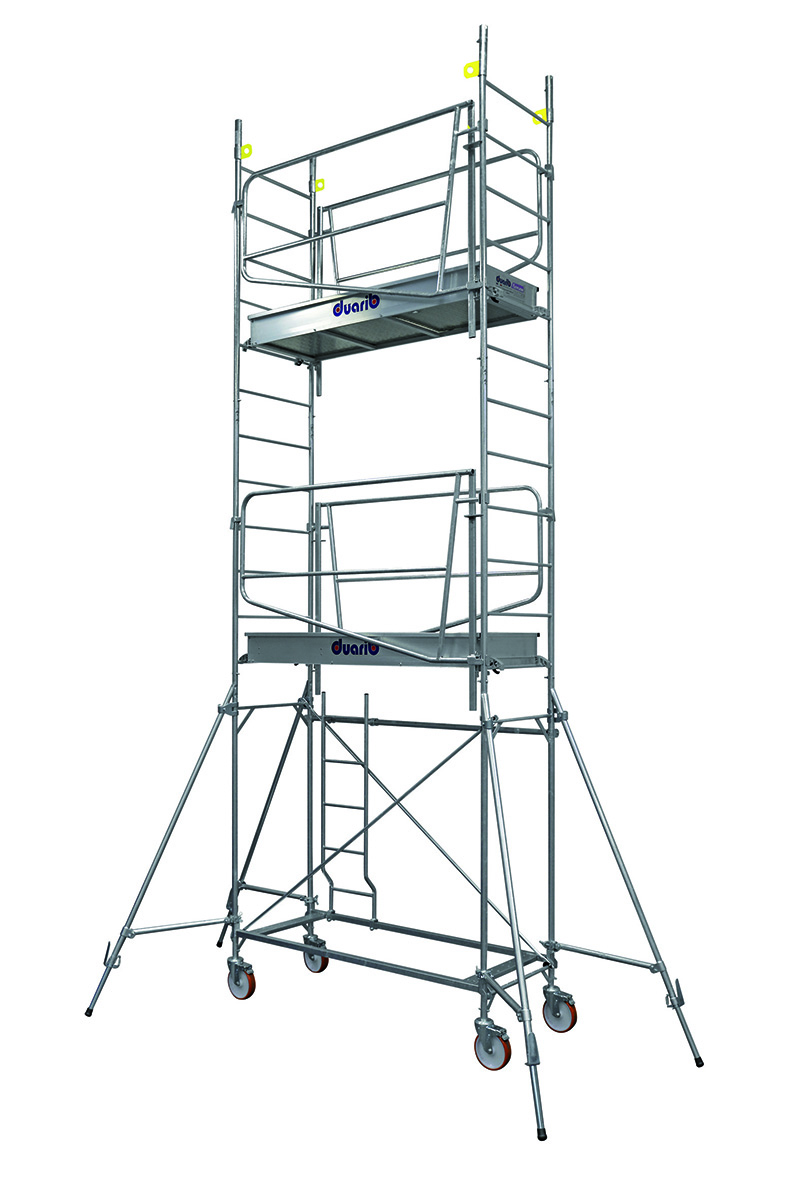

Galvanized steel mobile scaffold tower which facilitates and secures work inside the forms, without hindering movement.
- Working height up to 6.60 m.
- Safety: 2
- 4 patents
- Safe assembly and disassembly by a single operator.
- First level access withn detachable ladder.
- Base structure clear of ground and raised.
- Large clearance under the platform (man height).
- Non-slip checker plate sheet surface.
- Stabilizers can be fixed from a distance.
- Non-slip aluminium checker plate sheet surface.
- Aluminium checker plate sheet= easy cleaning.
- Aluminium checker plate sheet=long lasting non-slip capability.
- Extendable stabilizers for uneven floors.
- Platform with integrated toe-boards.
- Adjustable wheels over 20 cm.
- Can be hoisted using four dedicated anchor points.
- Galvanized steel.
- Decree 2004-924 / EN 1004 standard.
- Uprights Ø: 35 mm.
- Max work height: 6.60 m.
- Length: 2 m - Width: 0.69 m.
- Overall size: Length: 1.90 m – Width. : 0.79 m.
- Compact base size.
- Safe assembly and disassembly by a single operator.
- Aluminium platform with 1 trapdoor.
- Incorporated aluminum toeboards.
- Robust aluminium chequer plate platform.
- Usable area: 1.70 x 0.56 m
- Load capacity per platform: 190 kg.
- Clearance height: 1.74 m.
- 4 adjustable stabilizers.
- Ø 200 mm wheels adjustable over 20 cm.
- 4 hoisting shackles.
- Assembly type: welded.
- Made in France.
Models
| Code | Description | Platform height (m) | Work height (m) | Usable area per platform (m) | Number of platform levels | Weight (Kg) | Price € (Excl. taxes) |
|---|---|---|---|---|---|---|---|
| 8220031 | AC 200 Formworks | 2.50 | 4.50 | 1.70 x 0.56 | 1 | 140 | 3 694.00 |
| 8220041 | AC 200 Formworks | 4.00 | 6.00 | 1.70 x 0.56 | 2 | 202 | 5 305.00 |
| 8220051 | AC 200 Formworks | 4.60 | 6.60 | 1.70 x 0.56 | 2 | 19212 | 5 477.00 |
